Kenwood R-5000

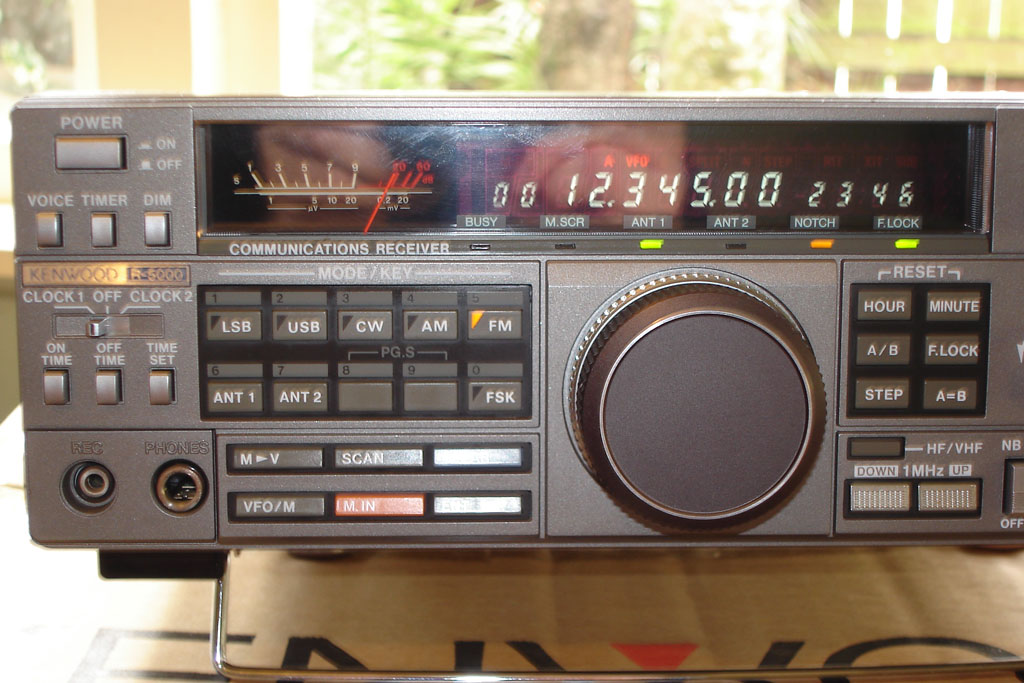

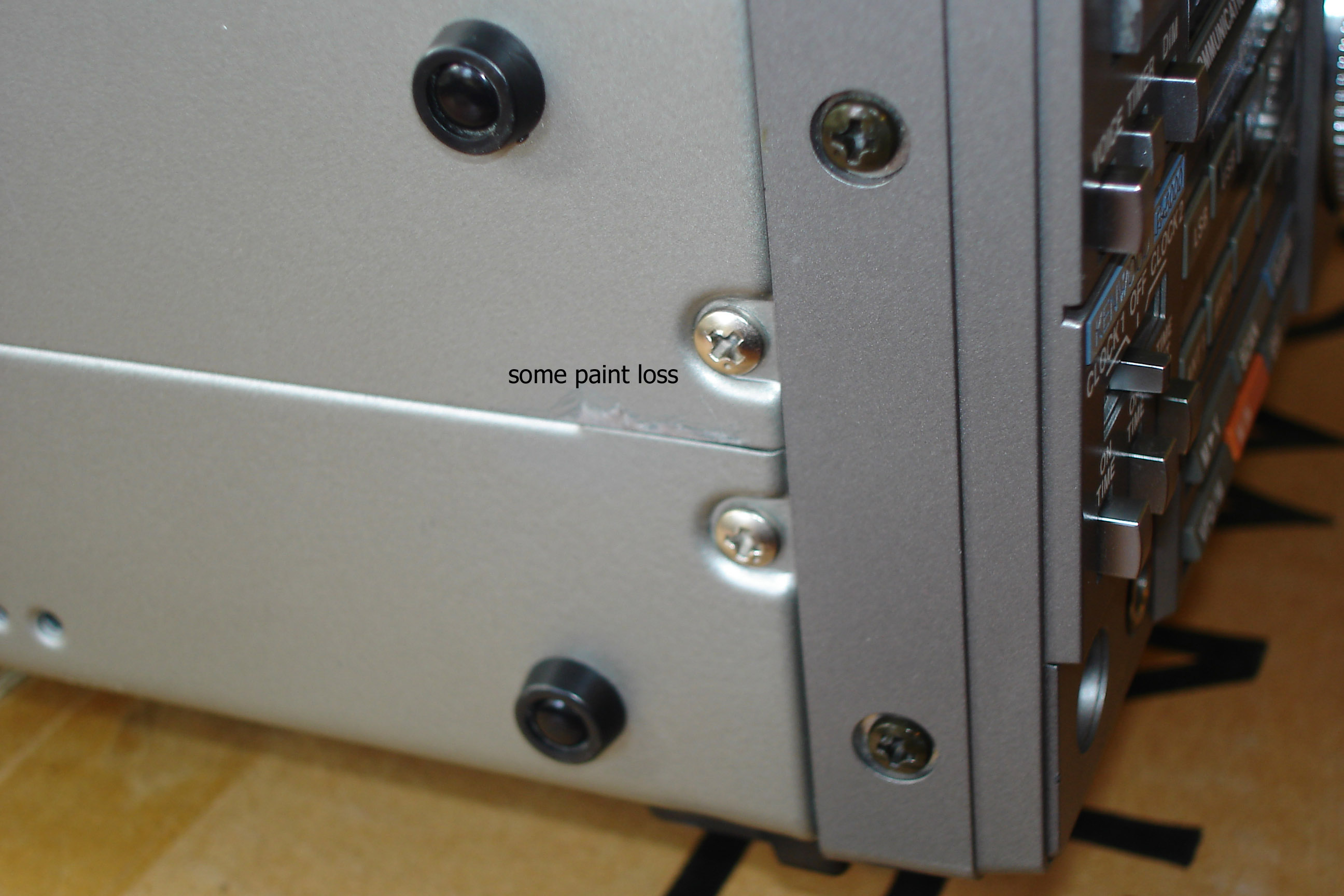

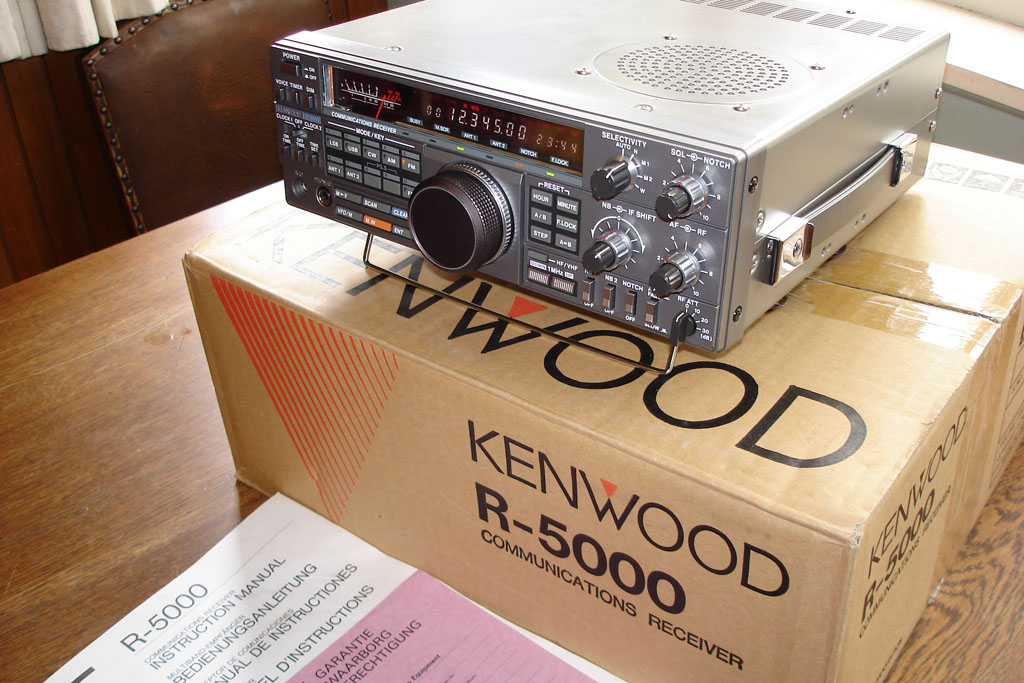

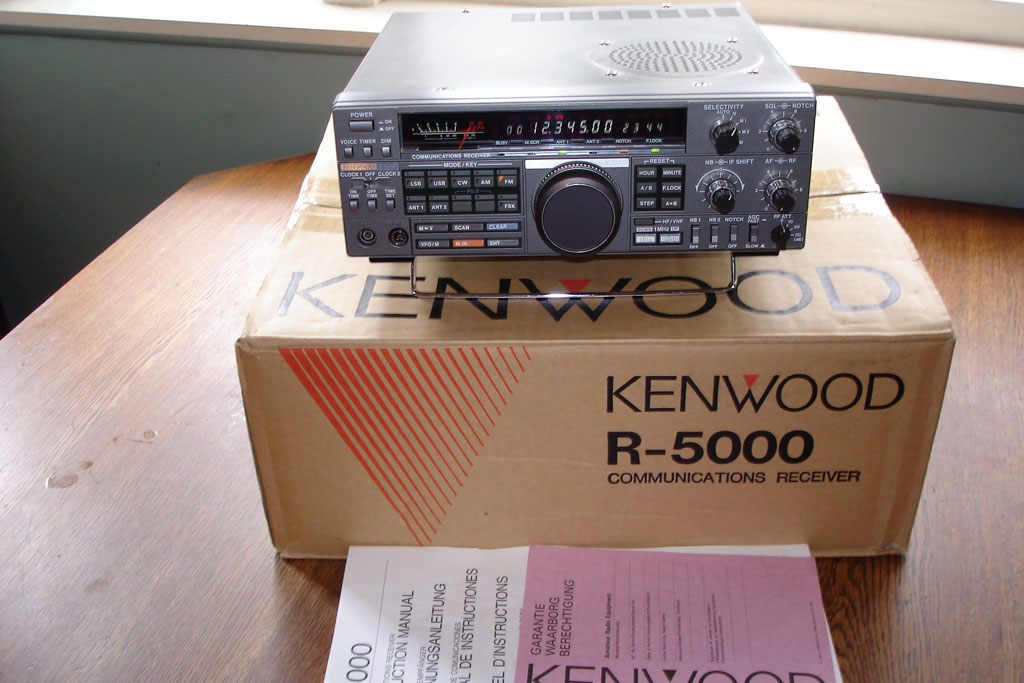

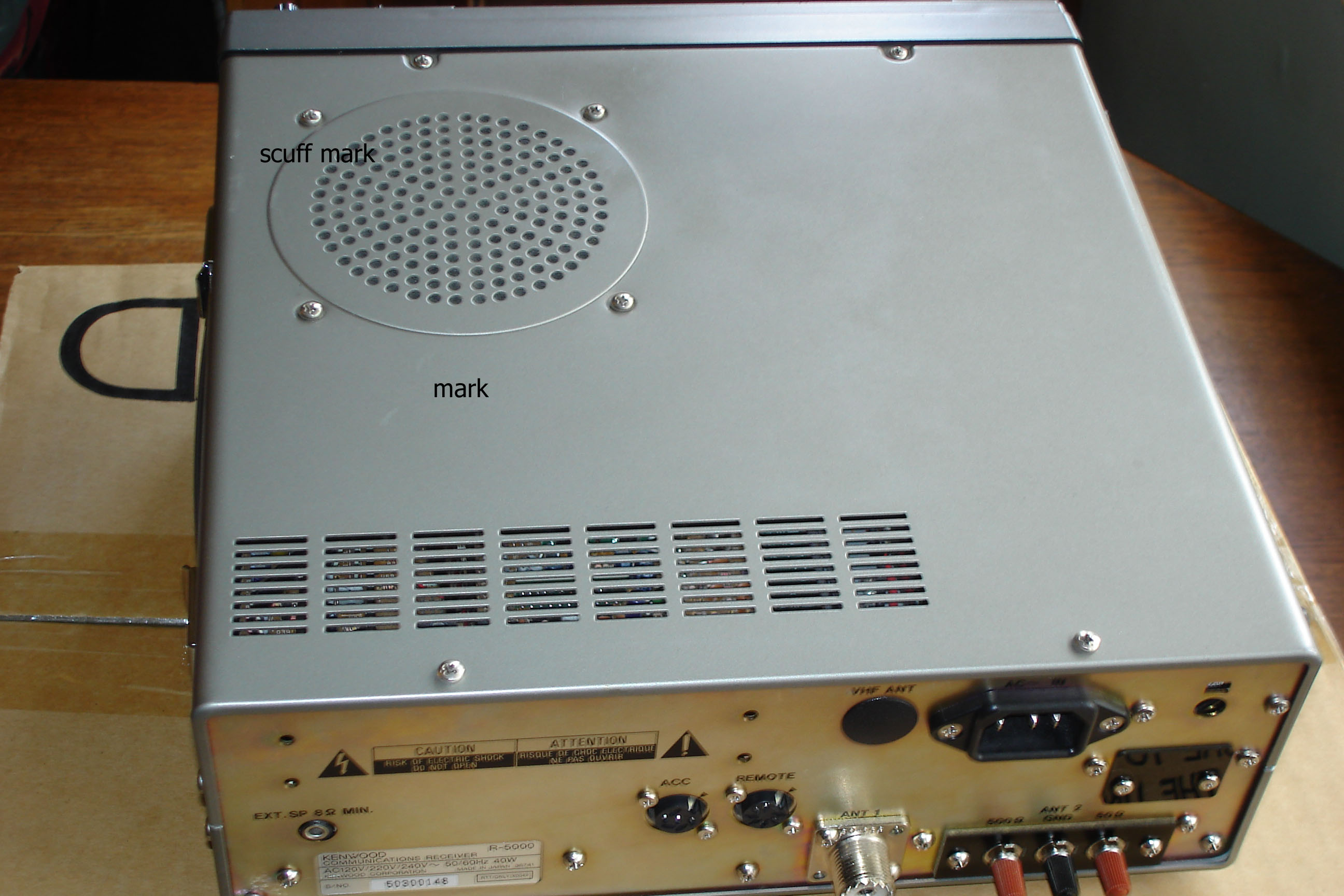

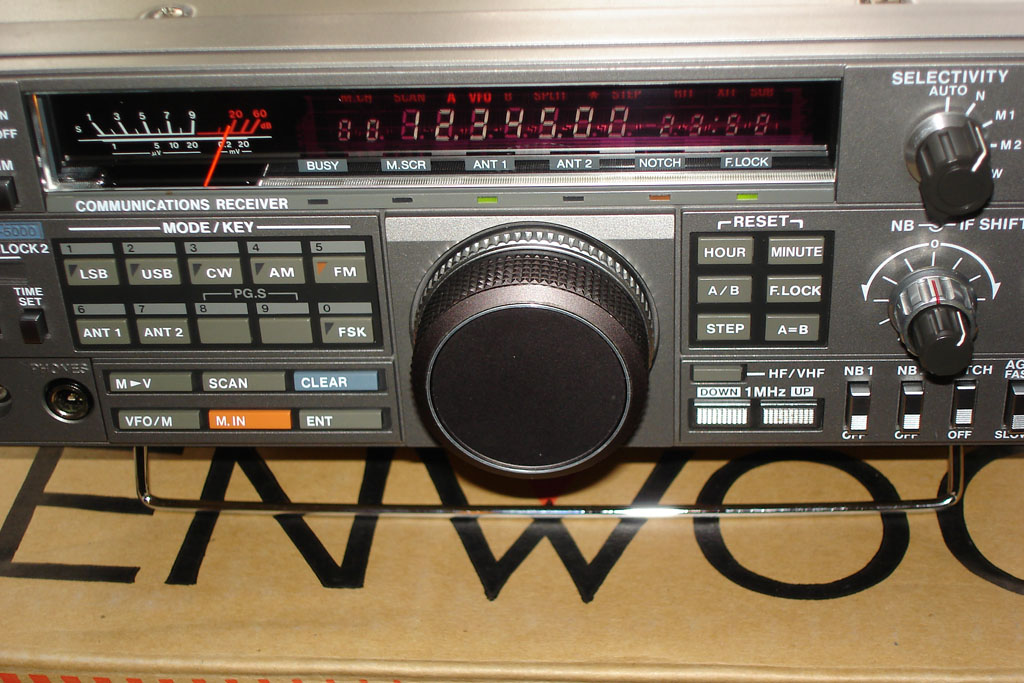

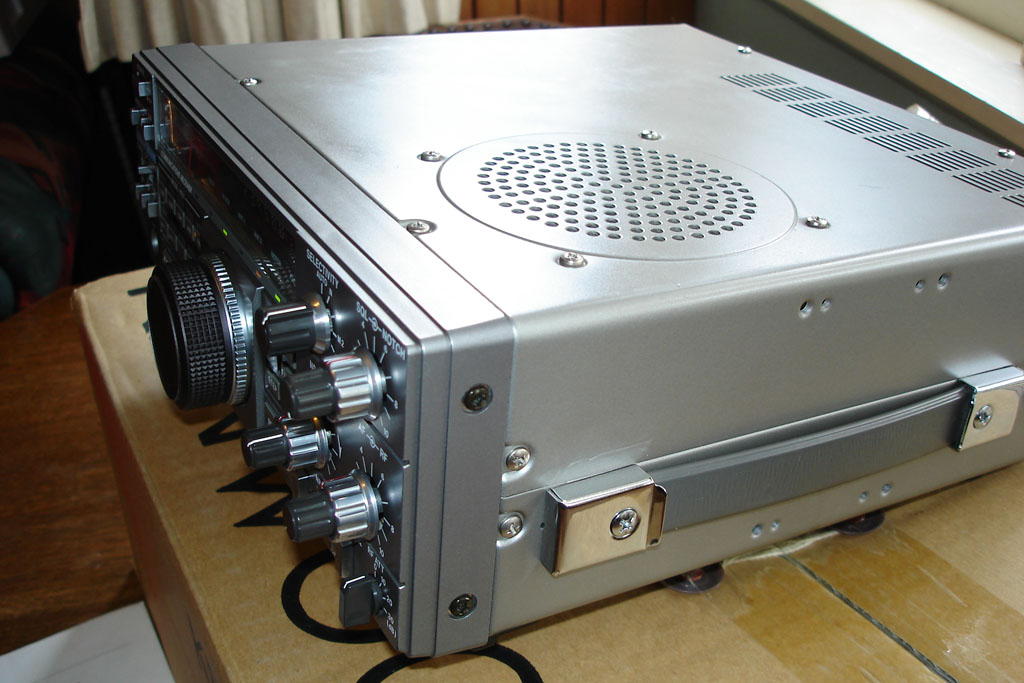

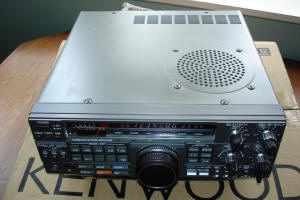

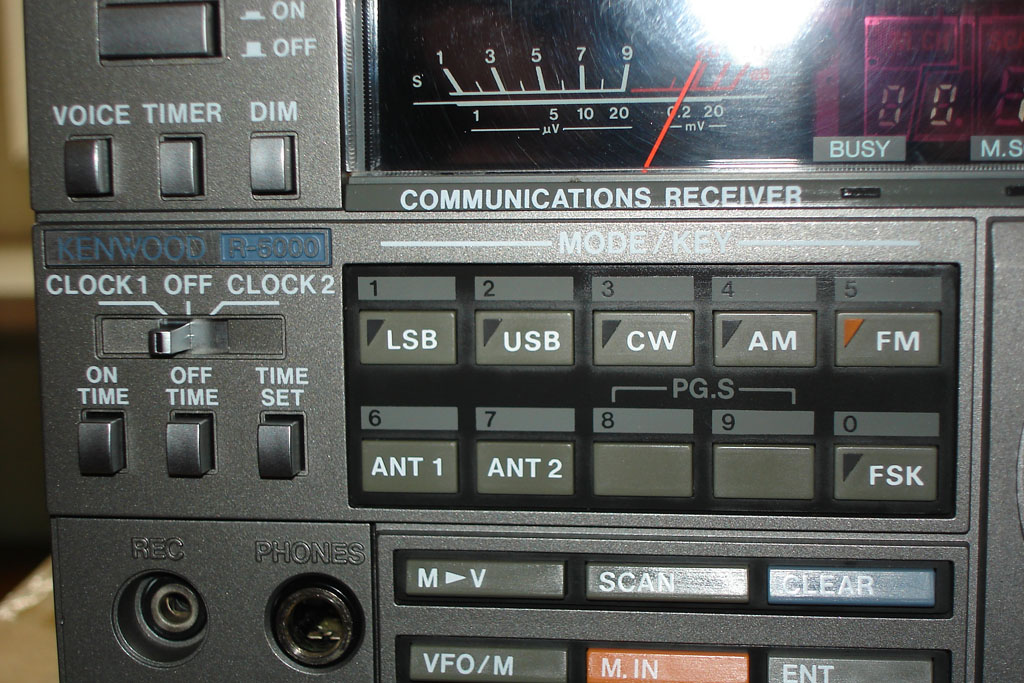

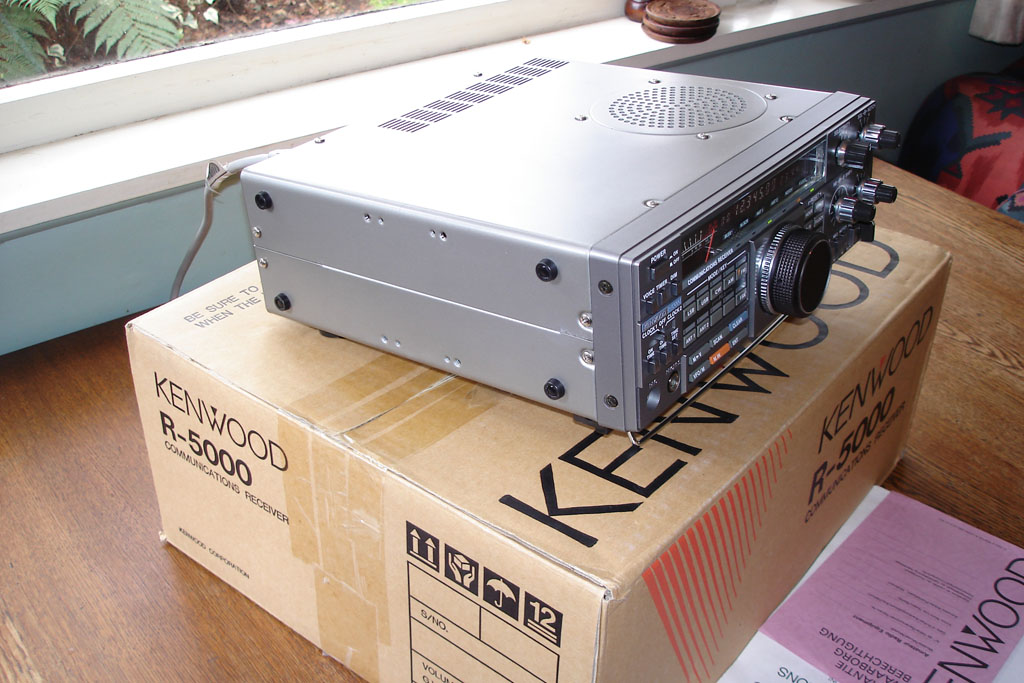

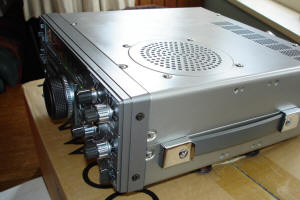

	R5000 supplementary photos taken 25 Aug 2007 Click images for 1024x768 zoom-in.. Return to Sales Pages

Circuitry AM/USB/LSB/CW/FSK
Double-Conversion Superheterodyne
FM Triple-Conversion Superheterodyne
Antenna Impedance Antenna 1 50 ohms
Antenna 2 50/500 ohms
Frequency Range 100 kHz to 30 Mhz
108 to 174 Mhz
Intermediate Frequency AM/USB/LSB/CW/FSK 1st: 58.1125 MHz, 2nd: 8.83 MHz
FM 1st: 58.1125 MHz, 2nd: 8.83 MHz, 3rd: 455 kHz
Modes AM(A3)/USB(J3E)/LSB(J3E)/CW(A1A)/FM(F3E)/FSK(F1B)
Sensitivity
Mode\\\\Freq. 100-150 kHz 150-500 kHz 500 kHz-1.8 MHz 1.8 MHz-30 MHz
108 MHz-132 MHz 132 MHz-174 MHz
USB/LSB/CW/FSK
[at 10 dB (S+N/N] <2.5 uV <1 uV <4 uV <0.25 uV <0.5 uV <0.25 uV
AM
[at 1 kHz 30% mod.] <25 uV <10 uV <32 uV <2 uV <4 uV <2 uV
FM
[at 12 dB SINAD] --- --- --- <0.5 uV <1 uV <0.5 uV
Selectivity USB/LSB/CW/FSK -6 dB 2.4 kHz
-60 dB 4.4 kHz
AM -6 dB 6 kHz
-60 dB 11 kHz
FM -6 dB 12 kHz
-50 dB 25 kHz
Image Ratio 100 kHz to 1.8 MHz 1.8 to 30 MHz 108 to 123 MHz 123 to 174 MHz
>60 dB >80 dB >40 dB >50 dB
1st IF Rejection 100 kHz to 1.8 MHz 1.8 to 30 MHz 108 to 123 MHz 123 to 174 MHz
>60 dB >80 dB >70 dB >80 dB
IF SHIFT Variable Range More than +/- 0.9 kHz
NOTCH Filter Attenuation More than 25 dB (500 to 2600 Hz) Squelch Sensitivity
Mode\\\\Freq. 100-150 kHz 150-500 kHz 500 kHz-1.8 MHz 1.8 MHz-30 MHz
108 MHz-132 MHz 132 MHz-174 MHz
AM/USB/LSB/CW/FSK <20 uV <10 uV <20 uV <2 uV <10 uV <2 uV FM --- --- --- <.32 uV <1 uV <0.32 uV
Frequency Accuracy Less than +/- 10 PPM
Frequency Stability Less than +/- 10 PPM
Output External Speaker 1.5 W across 8 ohms load (10% distortion)
REC Jack 300 mV across 4.7 Kohm load (at 1 mV input with 30%
modulation in AM or 3kHz deviation in FM)
Output Load Impedance 8 ohms maximum
Clock Type Quartz Clock
Accuracy Less than +/- 60 seconds/month
Power Requirement 120 VAC +/- 10% 60 Hz or 13.8 VDC +/- 15%
Power Consumption 40 watts (AC) or 2 A (DC)
Operating Temperature -10 to +50C (+14 to 122°F)
