Hallicrafters SX130
Click images for 800x600 zoom-in..
Download
manual (djvu)search this model, there's plenty of info online
Circuit Complement: 6DC6 RF Amp, 6EA8 Mixer/Osc, 6EA8 1st IF Amp/Crystal
Sel., 6BA6 2nd IF Amp, 6AL5 AM Detector/NL, 6BE6 BFO/Product Detector,
6GW8 AF Amp/Output and several diodes. Ranges . .535-1.61, 1.725-4.7, 4.5-13 and
11.9-31.5 MHz. Reception gap from 1610-1725 kHz. Bandspread ranges:

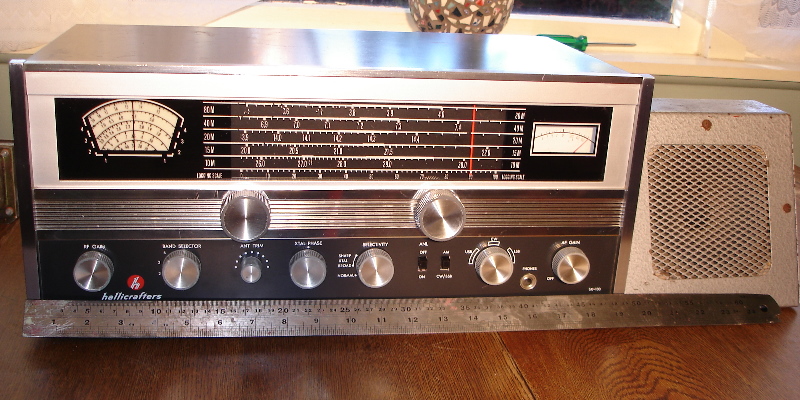

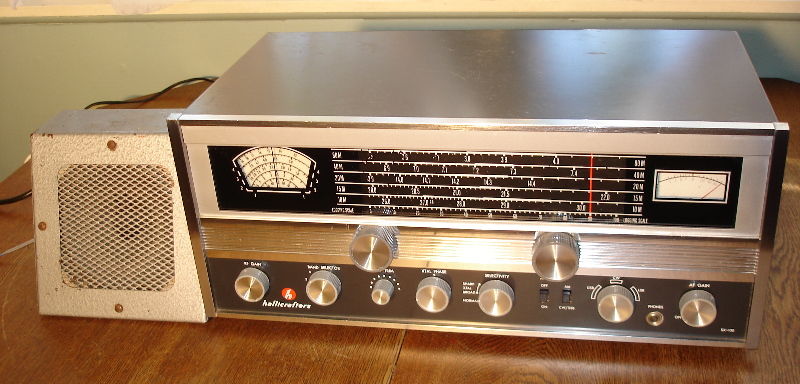

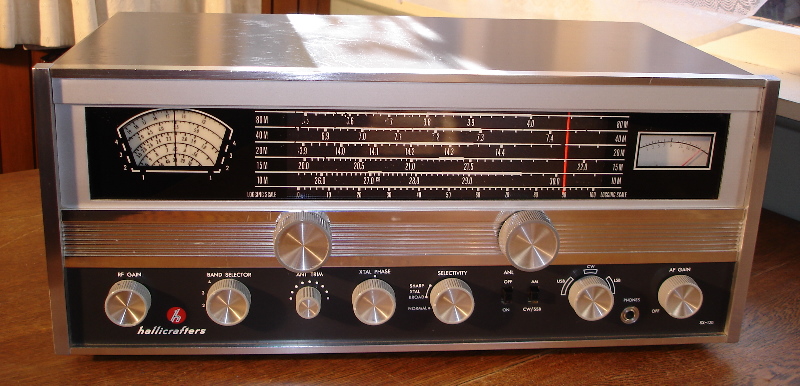

3.5-4, 7-7.4, 13.9-14.4, 20-22 and 26-30 MHz. Note that the bandspread
occupies the long horizontal dial and the main tuning occupies the
smaller rotary dial to left Click images for 800x600 zoom-in..
