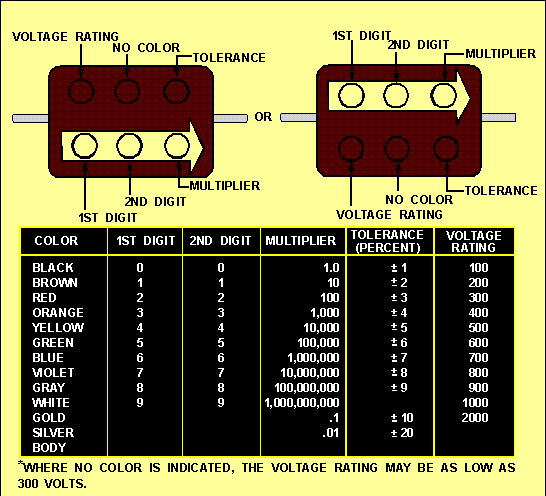

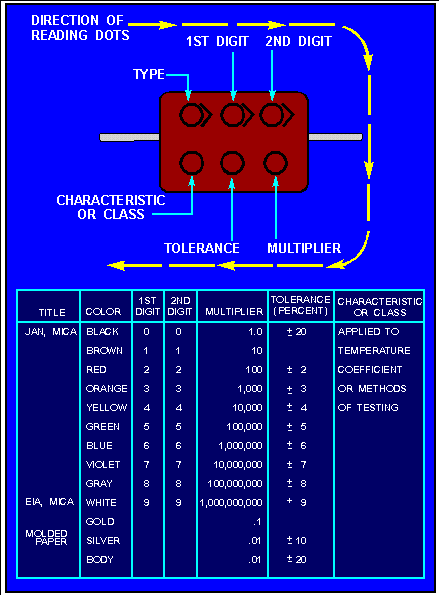

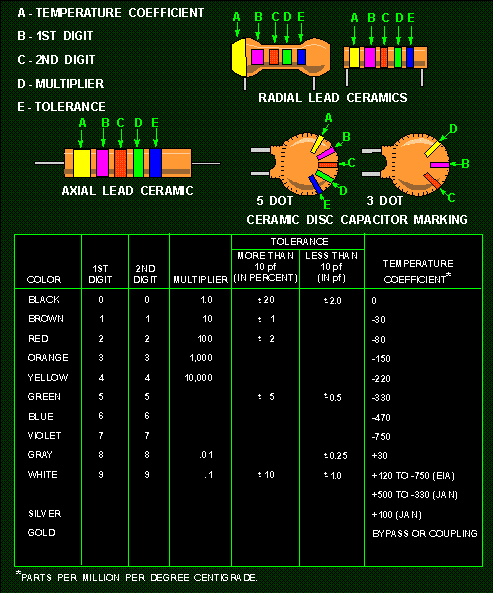

Capacitor Colour Codes & Identification

Radio & Electronics Glossary
Resistor Colour Codes
Capacitor Colour Codes
Inductor Colour Codes
Wiring Loom Colours

Signal Diode Color Codes
Typical Radio Dial Pilot Lamps
VT Tube (Valve) Equivalents
CV Tube (Valve) Equivalents #2
ECU (foreign) to American Cross Reference
New Zealand Radio Spectrum

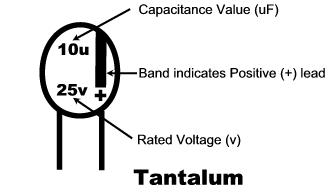

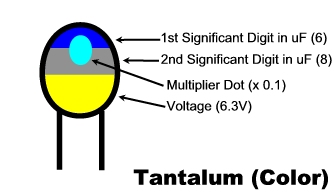

Color	1st Digit	2nd Digit	Multiplier Dot	Voltage
Black	0	0	x 1	10V
Brown	1	1	x 10	-
Red	2	2	x 100	-
Orange	3	3	-	-
Yellow	4	4	-	6.3V
Green	5	5	-	16V
Blue	6	6	-	20V
Violet	7	7	-	-
Gray	8	8	x 0.01	25V
White	9	9	x 0.1	3V
Pink	-	-	-	35V

Common Capacitor Working Voltages (DC), By Capacitor Type.

Ceramic	Electrolytic	Tantalum	Mylar (Polyester)	Mylar (Metal Film)
	10V	10V
16V	16V	16V
		20V
25V	25V	25V
	35V	35V
50V	50V	50V	50V
	63V
100V	100V		100V
	160V
			200V
	250V			250V
	350V
			400V	400V
	450V
600V
				630V
1000V
