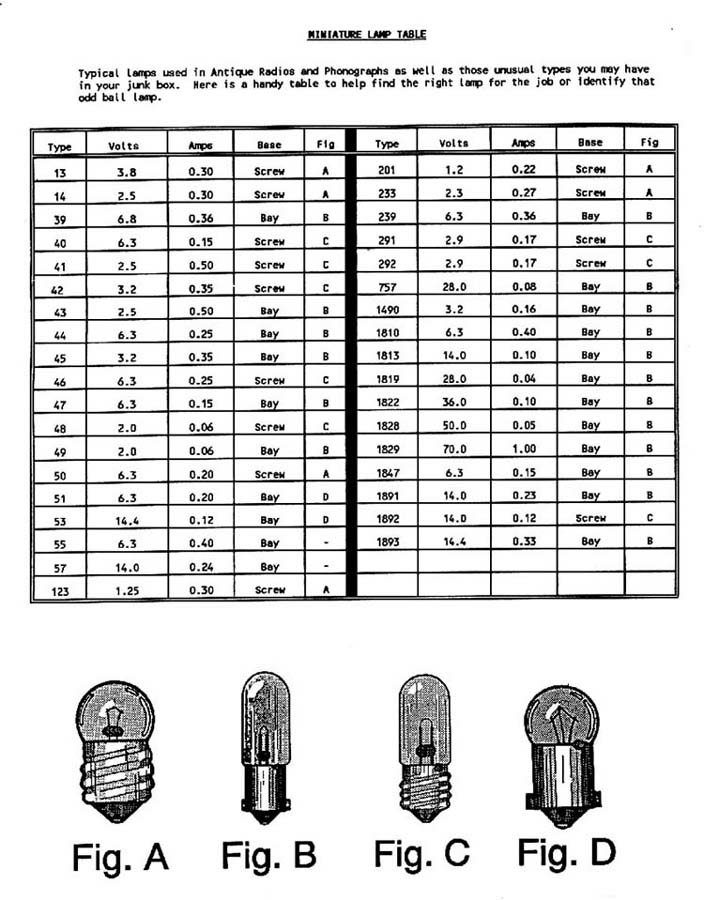

Minature Pilot Dial Lamp Table

Radio & Electronics Glossary
Resistor Colour Codes
Capacitor Colour Codes
Inductor Colour Codes
Wiring Loom Colours
 		 Signal Diode Color Codes
Typical Radio Dial Pilot Lamps
VT Tube (Valve) Equivalents
CV Tube (Valve) Equivalents #2
ECU (foreign) to American Cross Reference
New Zealand Radio Spectrum
DIAL LAMPS - TECHNICAL INFORMATION
Lamp Type Circuit Volts Rating Volts Rating Amp. Bead Color Base Used For
12 6.3 V 6.3 V 0.15 A No Bead 2-Pin Dials
14 2.47 V 2.47 V 0.30 A Clear Screw ?
40 6.0-8.0 V 6.3 V 0.15 A Brown Screw Dials
41 2.5 V 2.5 V 0.50 A White Screw Dials
42 3.2 V 3.2 V 0.35 A Green Screw Dials
43 2.5 V 2.5 V 0.50 A White Bayonet Dials & Tuning Meters
44 6.0-8.0 V 6.3 V 0.25 A Blue Bayonet Dials & Tuning Meters
45 3.2 V 3.2 V 0.35 A White Bayonet Dials
46 6.0-8.0 V 6.3 V 0.25 A Blue Screw Dials & Tuning Meters
Lamp Type Circuit Volts Rating Volts Rating Amp. Bead Color Base Used For
47 6.0-9.0 V 6.3 V 0.15 A Brown Bayonet Dials
48 2.0 V 2.0 V 0.06 A Pink Screw Battery Set Dials
49 2.0 V 2.0 V 0.06 A Pink Bayonet Battery Set Dials
50 6.0-8.0 V 7.5 V 0.20 A White Screw Auto Sets & Flashlights
51 6.0-8.0 V 7.5 V 0.20 A White Bayonet Auto Sets & Flashlights
52 14.4 V 14.4 V 0.10 A Clear Screw ?
53 12-16 V 14 V 0.20 A No Bead Bayonet ?
55 6.0-8.0 V 6.5 V 0.40 A White Bayonet Auto Sets
57 14 V 14 V 0.24 A White Bayonet Auto Sets
112 1.1 V 1.1 V 0.22 A Pink Screw Flashlights
Lamp Type Circuit Volts Rating Volts Rating Amp. Bead Color Base Used For
222 2.2 V 2.2 V 0.25 A White Screw Flashlights
243 2.3 V 2.3 V 0.27 A White Screw Flashlights
292 2.9 V 2.9 V 0.17 A White Screw Dials
292A 2.9 V 2.9 V 0.17 A White Bayonet Dials & Coin Machines
1455 18 V 18 V 0.25 A Brown Screw Coin Machines
1455A 18 V 18 V 0.25 A Brown Bayonet Coin Machines
1458 20 V 20 V 0.25 A No Bead Bayonet Dials
1490 3.2 V 3.2 V 0.15 A White Bayonet Dials
1819 28 V 28 V 0.04 A Clear Bayonet ?
1891 14 V 14 V 0.23 A Pink Bayonet Auto Sets
Lamp Type Circuit Volts Rating Volts Rating Amp. Bead Color Base Used For
1892 14 V 14 V 0.12 A White Screw Auto Panels
B1A ? ? ? White Bayonet ?
Candelabra 105-125 115 V 0.08 A No Bead Screw Dials & Night Light
PR2 2.4 V 2.4 V 0.50 A Blue Flange Flashlights
PR3 3.6 V 3.6 V 0.50 A Green Flange Flashlights
PR4 2.3 V 2.3 V 0.27 A Yellow Flange Flashlights
PR6 2.5 V 2.5 V 0.30 A Brown Flange Flashlights
PR12 5.95 V 5.95 V 0.50 A White Flange Flashlights

Dial Lamp Pictures and Data
Lamp(s): 40, 41, 42, 46, 48, 52, 243, 292, 1892
Lamp(s): 14, 43, 44, 45, 47, 49, 292A, 1490, 1819, 1891, BA1
Lamp(s): 50
Lamp(s): 51
Lamp(s): 55, 57
Lamp(s): 1455, 1458
Lamp(s): 112, 222
Lamps(s): PR2, PR3, PR-4, PR6, PR12
Lamp(s): 12
Lamp(s): Candelabra
