Note: Pricing is
tentative and subject to change. This is my personal gear, this is NOT a
commercial business
|

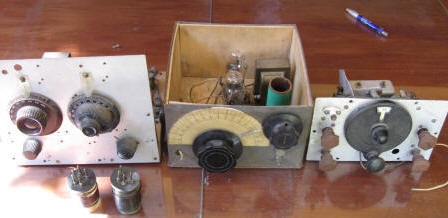

  Three
old pieces, untested but not too hard to get going. What you see is what
you get.
the set with 2
valves has 2x 30 triodes, the one with coils prob should have a 19 or
similar |
$45
trademe |

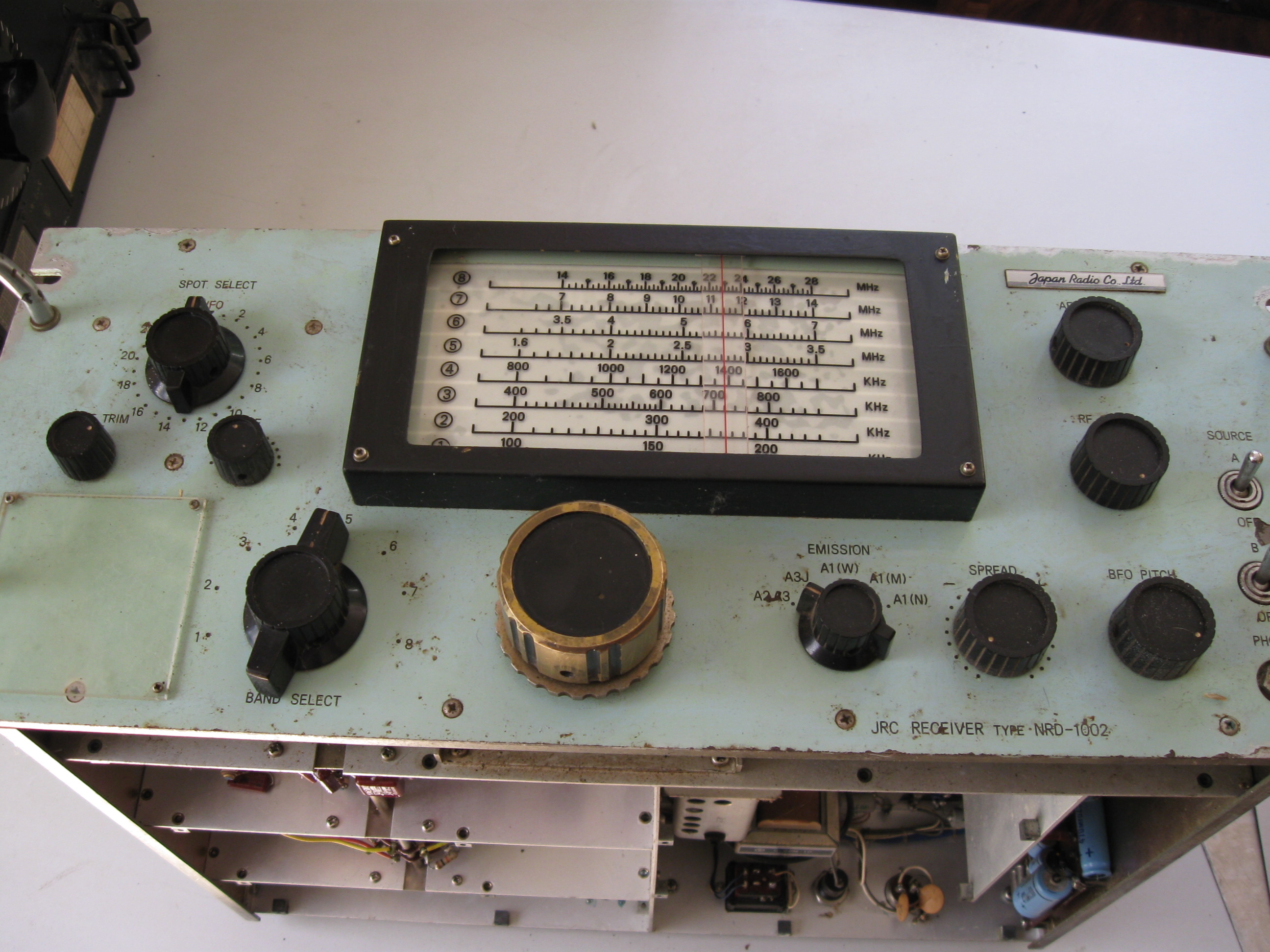

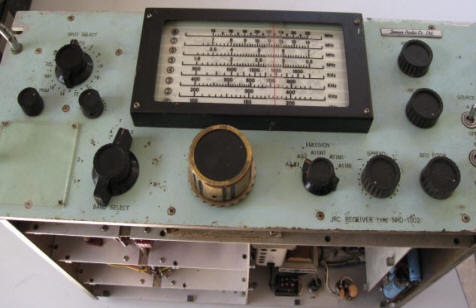

 JRC
NRD-1002, Not
much info in the net on this one, but a JRC or NRD collectors delight Im
sure. 24 crystal spot freqs (currently populated) or VFO operation.
Voltage selectable 100-117V,
Just checked, working well apart from two bands, likely the range
switched needs cleaned, cool fluorescent green dial/band back light, top
cover is alloy too but appears home brew, bottom plate is missing
screws, no power cord, (perhaps fit an IEC?). Cosmetic condition is less
than average, some paint loss but mostly just dirty and looks like it
might clean up o.k |
$210
trademe |

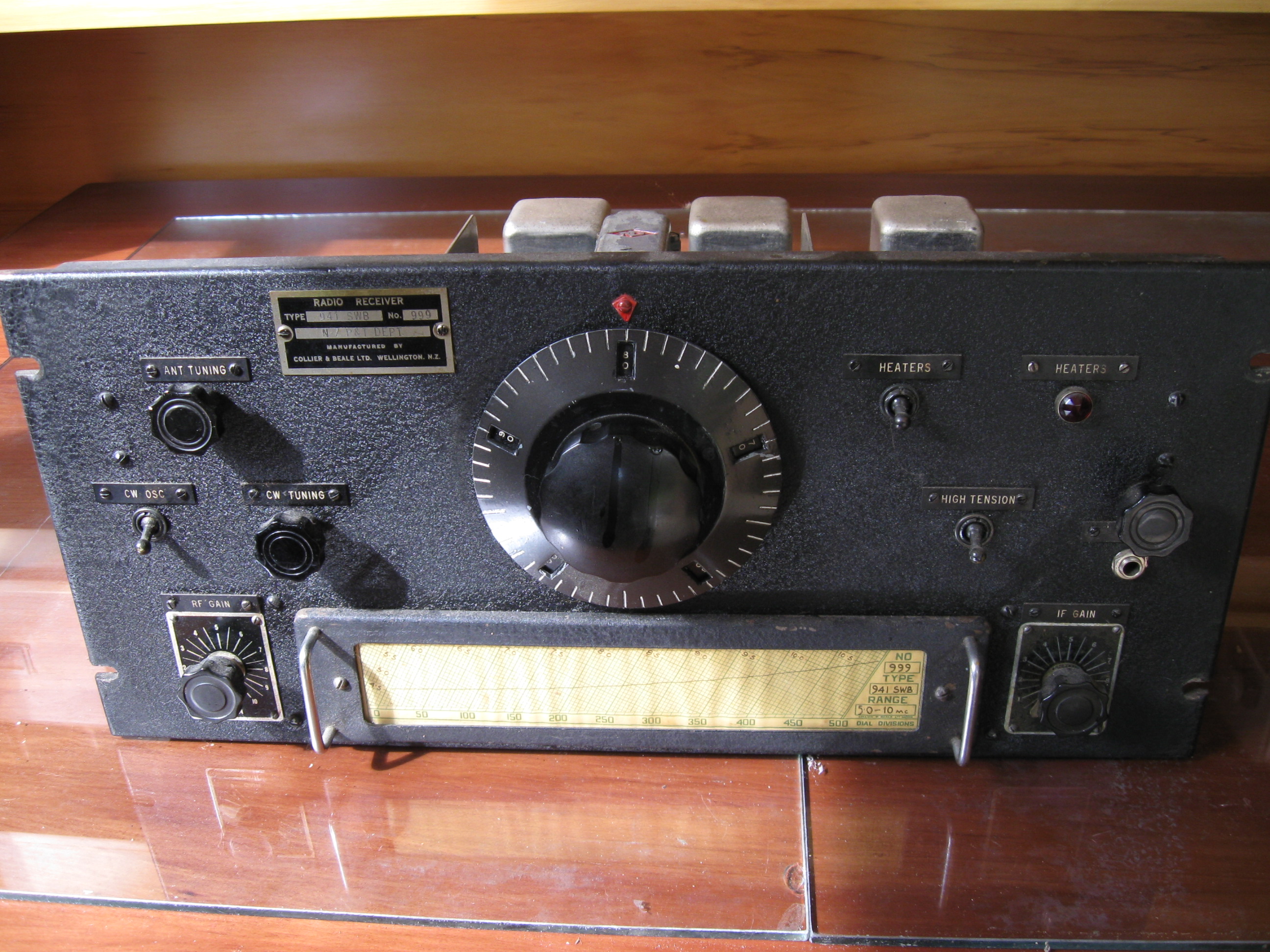

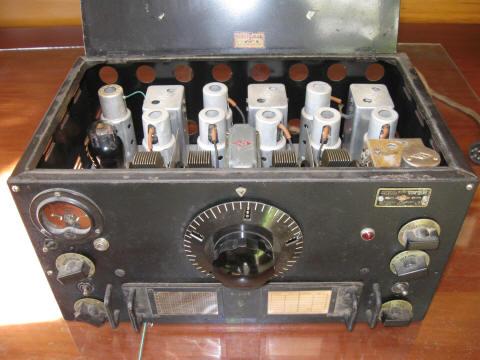

 Collier
& Beale 941SWB was
New Zealands answer to Nationals HRO. not
powered up, obviously been some hands in theres but appears all there.
This one belonged to the NZ P&T Dept. Supplied
with bound manual copy and two pcoil packs , 5-10mc and 10-20mc (plus
one spare of latter) serial#999
check my other cool listings.. |
$210
trademe |

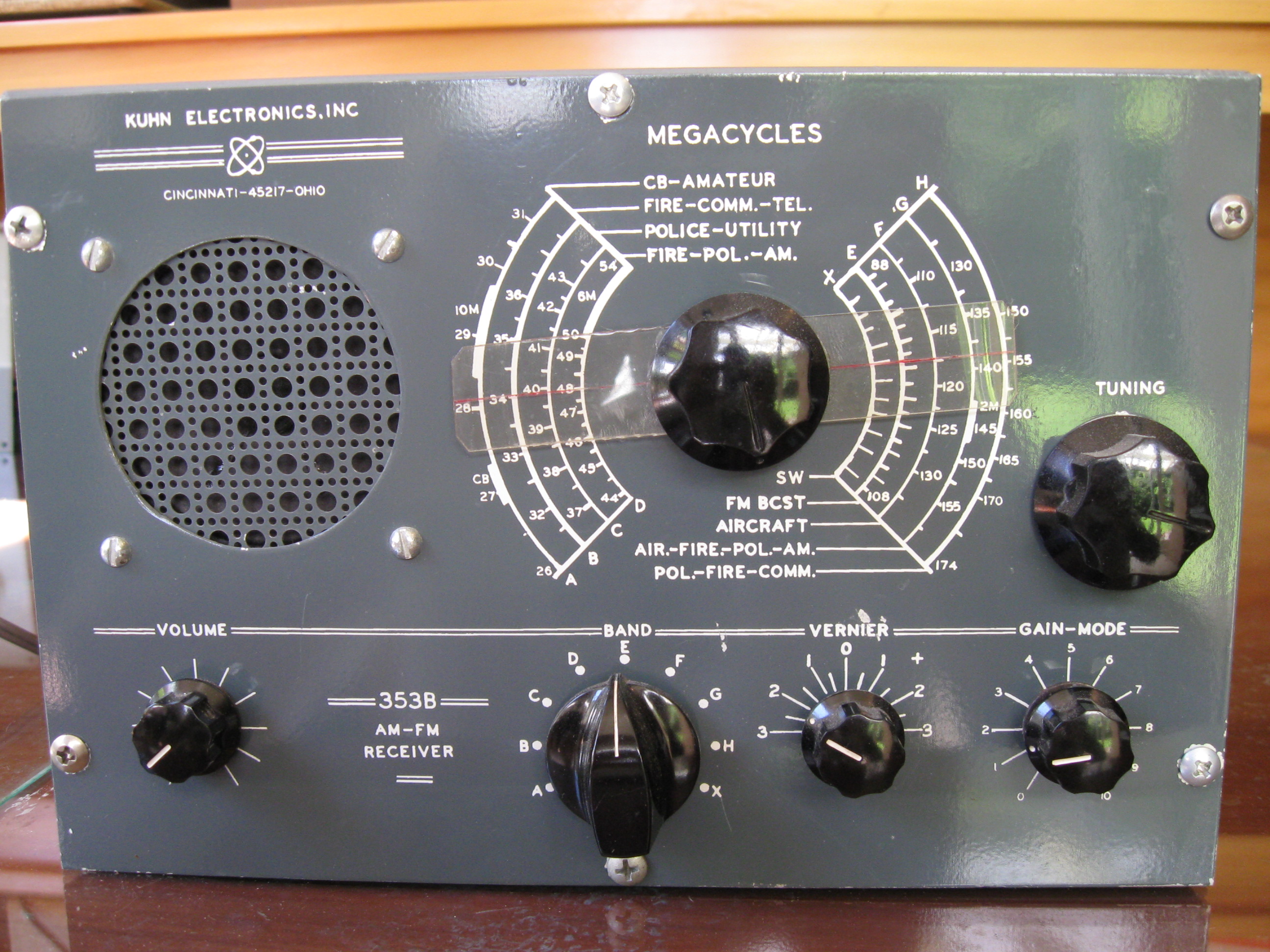

 Kuhn
Electronics 353B. Very nice tidy condition, fully cased, working,
original raytheon tubes, 120V, super compact, lightweight 1960's 6 tube
super regenerative set, AM & FM, Shortwave and AM/FM utilities 24
-174Mhz in 9 bands (some gaps). lots of fun to use.
|
$90
trademe |

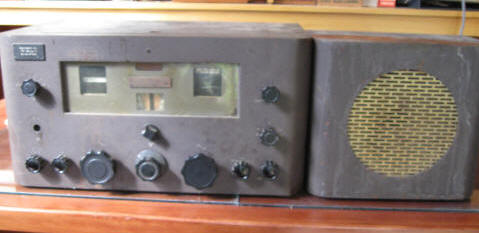

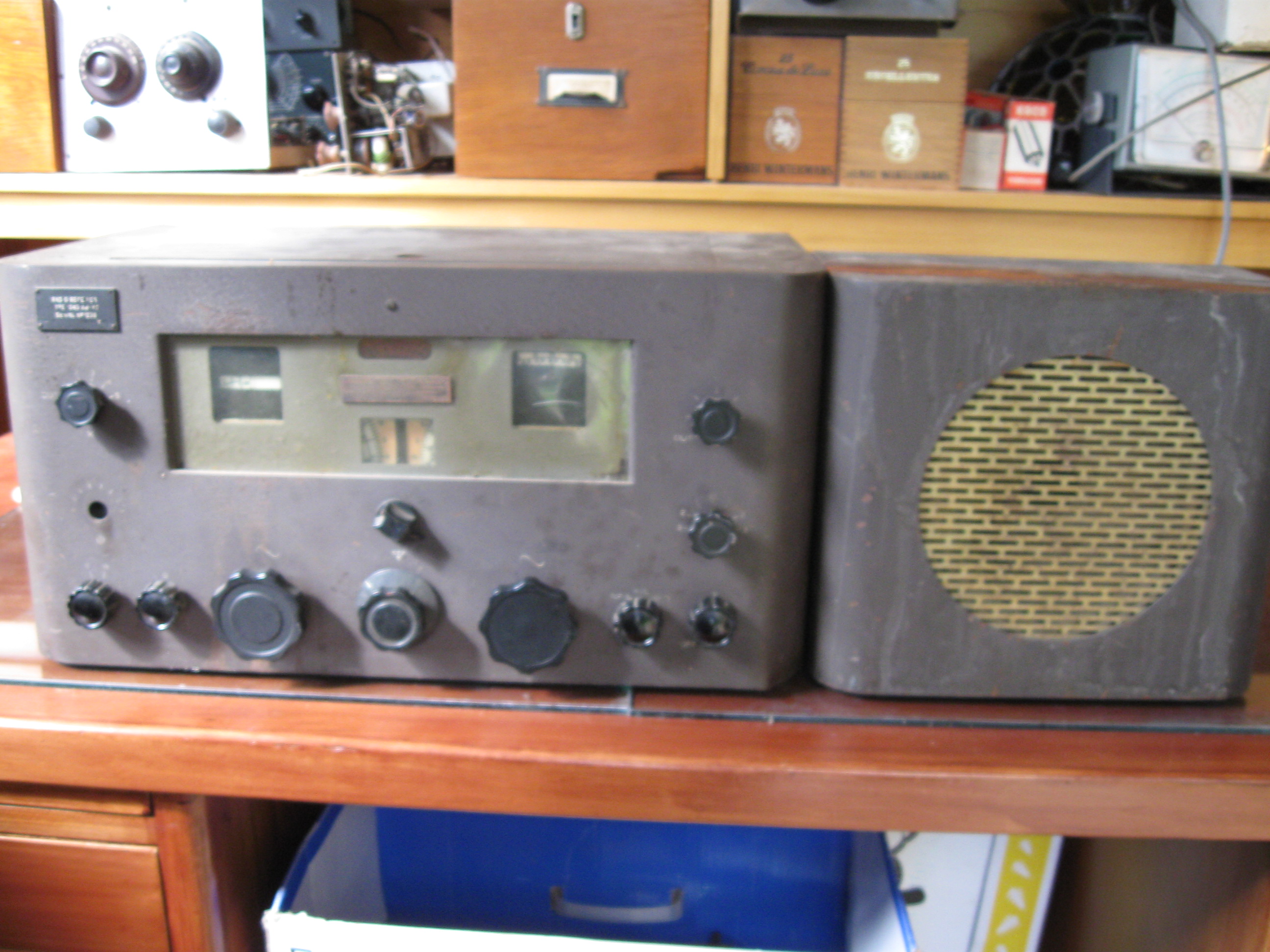

 RCA
AR77E (also
known as the GR10),
appears all there, not powered up as power tranny smells cooked, do the
electro's and it MIGHT be o.k. bottom plate loose, spkr top has some
rust, chassis not so bad, |
$40
trademe |

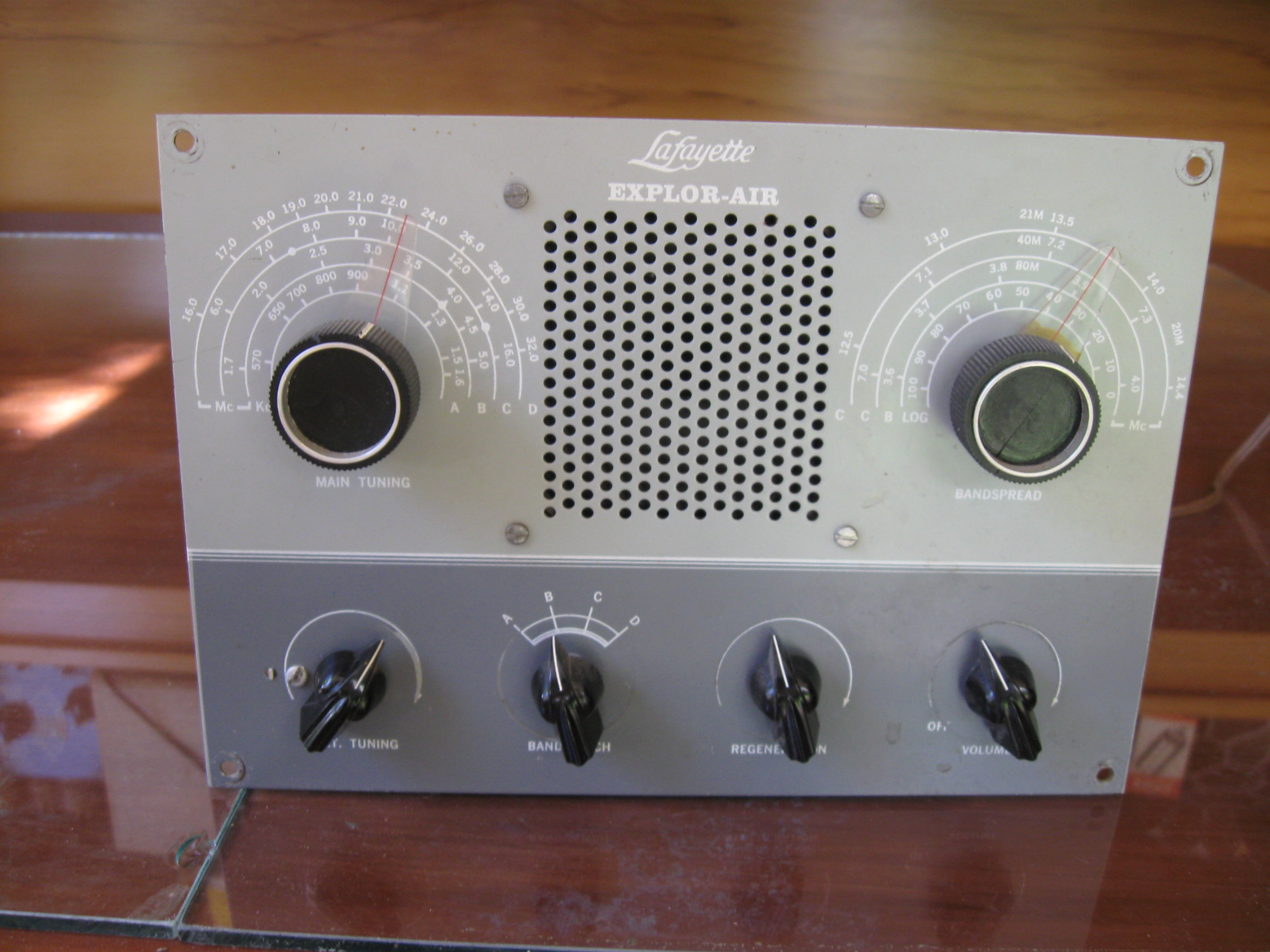

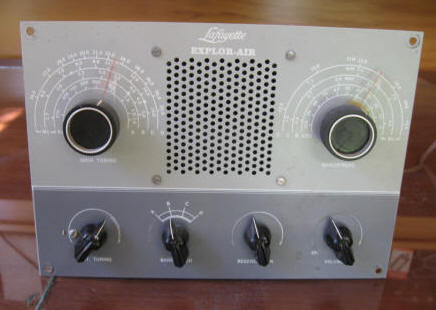

 Lafayette
Explor-Air KT-135, very tidy condition, working, 120V. Valve lineup is
50C5, 35W4 and 12AT7 tubes with 4 inch speaker.
Covers bands: .550 to 1.6 mhz, 1.7 to 5.0 mhz, 5.0 to 16.0 mhz, 15.0
to 32.0 mhz. fun to operate highly sensitive regen that can resolve ssb
without a product detector. no case,. |
$40
trademe |

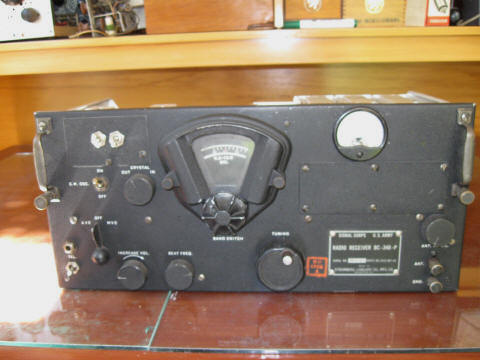

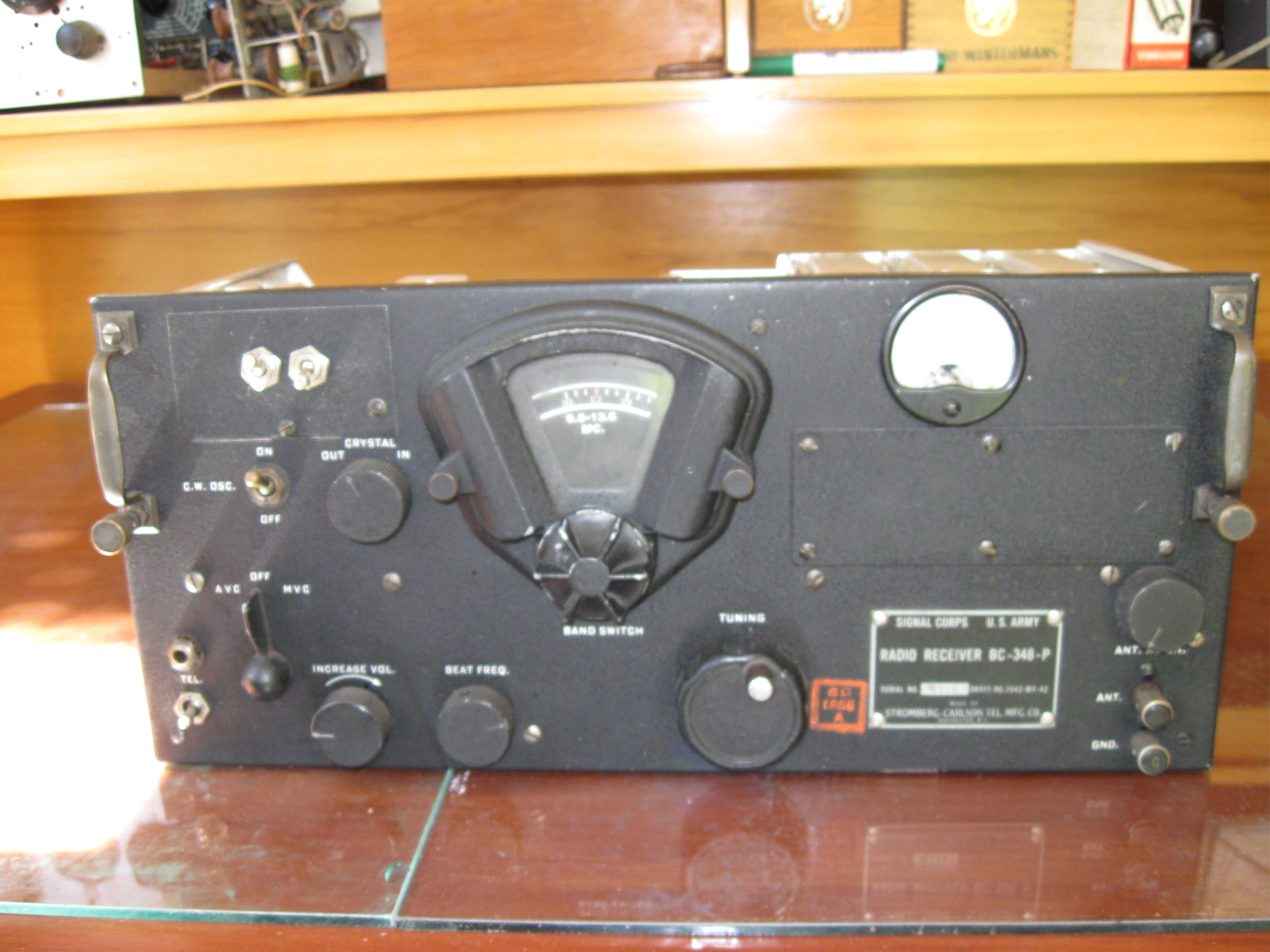

 BC-348
as
per normal has had power supply fitted at some stage along with most
caps by the looks, and by someone with a body shop iron cos some
components have not escaped their clumsy workmanship!.
Fired it up via variac, working o.k. to an extent, receives on all
bands with varied sensitivities and osc accuracy, so could do with
alignment after the very hummy caps are changed at the very least.
Because of the hum I didnt leave it on any longer than to determine
tranny is okay, lighting and ballast neon ok, doesn't appear to work if
AGC is off, works been done on crystal filter side of things,. Still
very tidy, original finish and easily fixed up. Comes with a shitload of
docs about an inch thick incl a3 foldout schematics. |
$200
trademe |

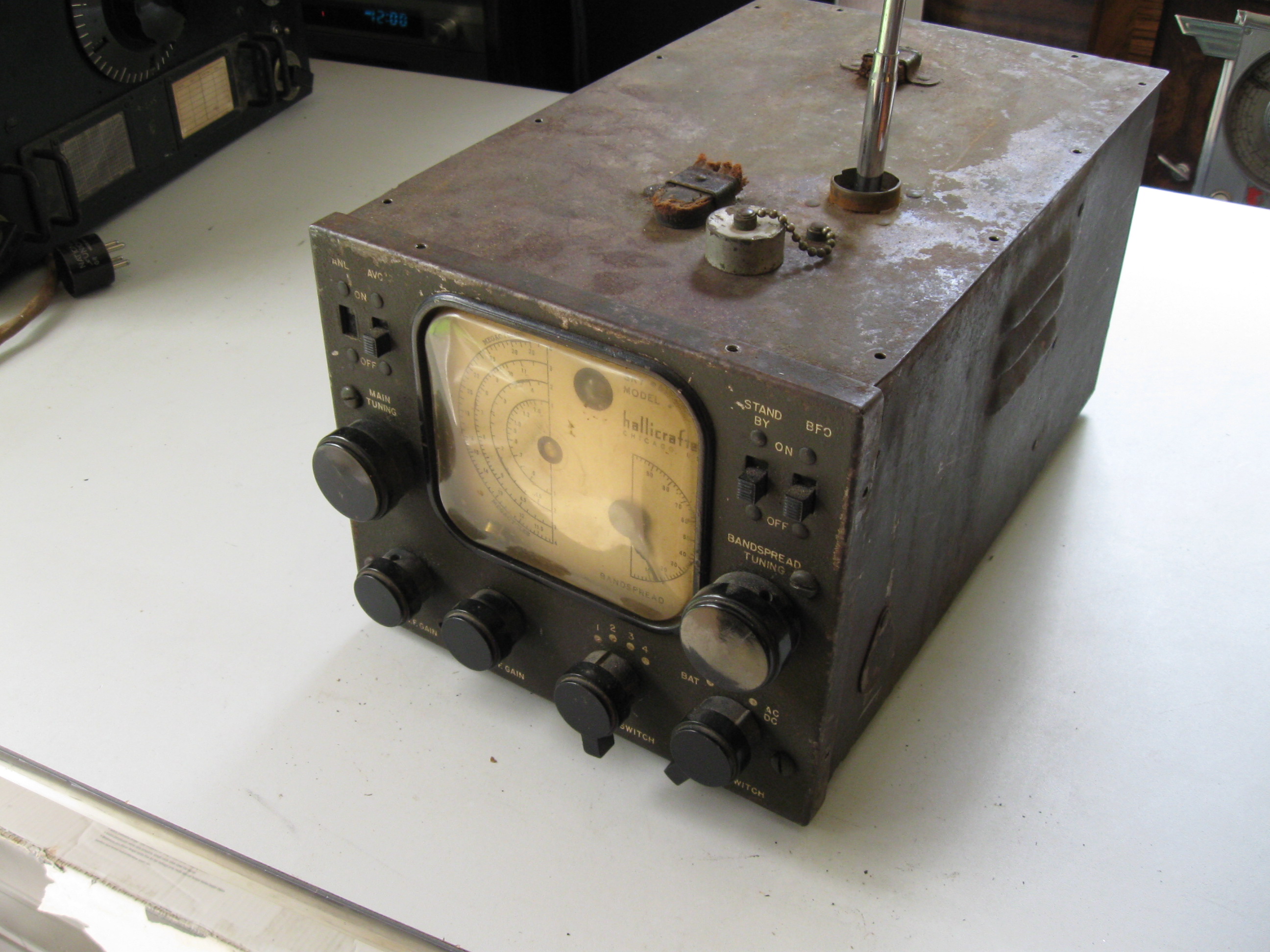

 WWII
Hallicrafters S-39 Sky
Traveler AC/DC Luggable shortwave receiver, 540k -30.5megs,
10/20/40/80M bandspread, not tested appears complete, pull up antenna
about 3ft.
Main
pointer needle has detached and is lying at bottom of window. Complete
with manual and service copy, should be a great project. screws missing. |
$200
trademe |
 NATIONAL
HRO-M Classic Comms gear, original HRO or HRO-M?, in good order,
but not operating fully (see below). Chassis is in great shape, cabinet
may have had a respray on top lid but overall looks pretty unmolested
bar one or two replaced modern resistors.
Coil packs suffer from more cosmetic wear and tear but appear all
there, 50-100k has one cracked former, scavenge it from the spare. The
good news is there is 10 of them, the full avail range, include the rare
VLF packs down to 50k. 50-100k
100-200k
180-430k
0.48-0.96M x2
0.9-2.05M
1.7-4.0M
3.5-7.3M
7-14.4M
14-30M
Each valve tested on avo
163. All except the 42 test as new and look brand new too. I applied
6.3vac and 250Vdc and fired it up, the i.f's are clearly working, can't
say the rf stage or mixer osc are working tho, but plenty of noise and
heterodyne whistles, s-meter works, gain volume, cw & phasing etc appear
to work. Might just need fingers on RF coil pack cleaned or aligned. |
$400
trademe |

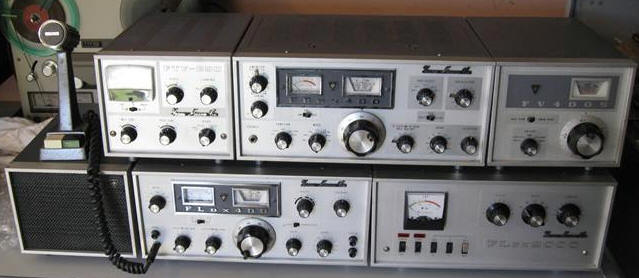

 Here's
a fully optioned classic Yaesu F-line station that was bought by me from a
deceased ham estate ten years ago. Everything else I bought at that time
worked so expect this gear is no exception. I have passively checked
everything, receiver works well, tx or amp not tuned up into a load. The
transverter and VFO were not checked. Seems okay but strictly sold
as-is. FLDX400 supplied with 4 new 6JS6's, FL-2000 linear amp with 4
new 6KD6's + 2 used. FRDX400 fully optioned with all filters and the 6m
and 10 meter boards, FTV650 6m transverter, FV400S VFO, UD844 mic and
matching speaker.They are in v.good overall condition and obviously from careful
smokefree operator, even the speaker grill hasnt faded to the commonly
seen brown. hues, good sign |
$1000
trademe |
 This
belonged to Arthur Cushen, the DX Legend from 212 Earn St Invercargill.
It is the same receiver that you see in his book 'The World In My ears",
a first edition autographed copy is included btw. Comes with orig
operating and service manual, in manilla folder c/w braille down side,
faint serial number on pink note on folder matches receivers. I am also
sure because I have owned other receivers of Arthur's bought in the same
venture.
This double
conversion four band .54-1.6, 1.75-34 mhz communications receiver is in
nice condition, some paint loss above calibrator switch and here and
there, oh yeah bottom cover has been repainted. The off function has
been moved to the volume control, I guess to simplify controls for poor
sight otherwise its original. |
$300
trademe |

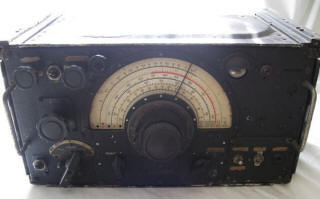

 British
Marconi, R1155A made for the RAF and the likes, a popular post war surplus
donor, This one working condition unknown, had power supply added, looks
complete but has had a hand or two inside.75kHz to 18.5 MHz in five
ranges |
$195
trademe |
 untested,
looks complete, has the right valves, cabinet needs a repaint, scratch
on dial face. I have more Italian Geloso gear in my collection and its
nice gear. Some of these were offered as kitsets.
3.5-4,7-7.3,14.0-14.35,21.0-21.45, 26.96-27.23,28-29.70.This ones
missing the usual 6H6 amperex ballast tube but most are and dosen't need
it. Sold as-is, pwr cord cut. Google
info on the net, try BAMA for manual, I can help if no joy. $1 start no
reserve. |
$45
trademe |

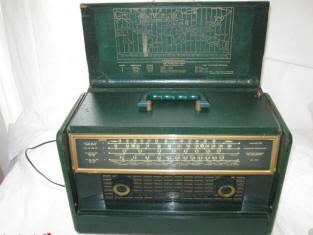

This a.c/d.c portable was Hallicrafters answer to the Zenith Trans Oceanic which had same 5 valve line-up, this looks great in its green 'alligator skin' and gold finish. This this is the 220V export version.
Itis working but only just, it needed 250-260V via a variac to overcome
low B+ and that will be certainly due to the old selenium rectifier and
leaky filter caps, do those and it'll go like a bomb. 0.17-0.4
and 0.54-18 MHz in 4 bands, Google for more info. Incidentally when
looking for specs/manuals it is the exactly same as the TW-600 and the
S-93 which differ only in colour |
$175
trademe |
 National
HRO 7 - no power supply, not checked, looks pretty
complete and has had some work under the bonnet at some time. Two coil
packs 1.9-2.05Mhz and 1.7-4.0. Tons of info on
this 40's collectible set on the net. as-is,
power supply is straight foward.
|
$36
trademe |
 Eddystone
S659
Rare model thats working fine but in pretty rough condition, needs TLC so sold as-is..
 |
$45
trademe |
 Eddystone
S840
missing all the
transformers, chokes, couple of valves,
missing, NO cover,
spares only by the looks.
|
$67
trademe |
 Eddystone
S640
power cord cut so not tested, looks complete and
likely a go-er
. |
$45
trademe |

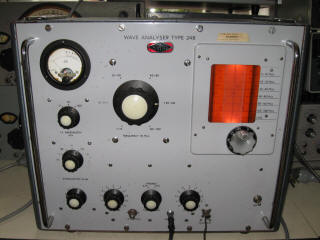

 Racal
Airmec Wave Analyzer 248
Don't know much about
this one, other than its well built, impressive looking and works well
as an HF-VHF (5Mhz-300Mhz) receiver. |
trademe
$51 |
 Denco
CT4, poss UK kitset, turret RF tuning. What you see is it what
you get, fired up gently today, loads of hum, some signs of life then
severely motorboats.
No further tests done, renew the HT caps,
clean all the turret connectors and recheck. The missing b9a valve is
likely an 0A2 regulator, ignore it. Pretty neat old set that should be
fun to resurrect |
$75
trademe |
 Eddystone
S750
In
pretty good order, some wear to faceplate, internals look original, very
tidy underneath. Fired up today, working on gram pickup, nothing doing
on the RF side, I left it there. Sold as-is. |
TBA
trademe |
 Hallicrafters
SR150 10-80M 125W CW, 150 SSB. pair of 12DQ6 pair
finals. From the mid sixties, original, tidy condition but not working.
Im sure it was down the track but now appears to be a short somewhere,
hopefully simple but I have neither the space nor energy.
Too
collectable to junk out so heres a project for you. Well made hefty
solid state homebrew power supply (with internal speaker) worth twice
the start bid alone. good luck. |
$100
trademe |

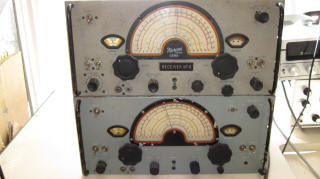

 Marconi CSR5A first built in 1942, this general coverage
receiver was capable of receiving CW or AM signals in the 80 khz
to 30 Mhz bands. It was a thirteen tube receiver weighing in at 68
pounds without power supply. The most notable feature, is the four
position IF band pass filter to reduce interference.
No power
supply, they look complete, bottom one has been re-sprayed
and re-lettered at sometime so that will be
the donor if needed. Untested, plenty of info on the net. good luck |
$80
trademe |

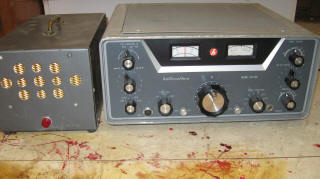

 Partial
Heathkit station consisting of SB-300 SSB
receiver, matching SB-600 speaker, SB-610 monitor scope and HM-15
reflected power meter. The latter hasn't been tested but is presumed
working. The rest are all go but for the S meter. Yes, these are 230V
versions and the use of a couple compactron valves keeps the count down.
Has the AM and SSB filters, the optional 400hz CW filter is not
installed. Condition pretty nice, some paint loss etc and receiver
wrinkle finish paint needs a damn good scrubbing.
SB-300 comes with orig assy and op manual, spec brochure plus
huge A1? (8xA4) schematic. |
$125
trademe |

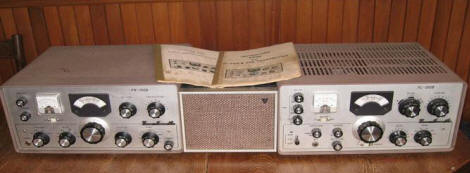

 No
longer used and need more space so letting go this working vintage
lineup, FL-200B and FR-100B. Both in great cosmetic condition.
Decommissioned about 8 years ago when I bought them and working
perfectly then. I checked the receiver this week and its still good
apart from the odd scratchy pot that needs cleaning due to misuse.
Powered up tx and checked passively as have no antenna or dummy.
Looks like a few vital caps have been replaced in it s past
somewhere and theres no reason it wont tune up nicely for you. No
mic supplied and speaker is not period so is a freebie.
|
$100!trademe |
Murphy B40 (Murphy Radio of Welwyn Garden City, U.K)
built for naval use to replace the classic Marconi CR100's series.
Single-conversion superhet
receiver with two RF stages and three IF
stages with IF pass bands of 8 kc/s (wide) and 3 kc/s
(narrow) It is truly a 'boatanchor' as it weighs in at over 50kg
(110lb)! It was literally built like a battleship
for battleships and integrates the radar interference suppression (RIS)
technology of the day.
Continuously tuneable from 600 odd KHz to 30MHz across 5 switched bands,
500 kHz IF and a crystal filter. Customers included the following navies, HMS, Royal Australian & Royal New
Zealand. Clean front panel, appears unmolested apart from power cord
change, some rust on cabinet. Lights up, no further tests done but I
understand first r.f stage is faulty and I have no inclination to heft
this mammoth up onto the bench only a few months after elbow surgery so
out it goes. Sold as-is. Pickup only on this one sorry. |
$250 |
|
 Collectible
Heathkit GR-81 'Economy Shortwave Listeners' regenerative 3 valve
receiver. Four band set covering 140kHz to 18 mHz. Tubes are
35W4 as rectifier, 50C5 audio pentode and a 12AT7 double triode for rf
detector and a first stage of audio. Comes complete with orig spec
sheet, The fused isolation transformer, supply choke and fuse set it
apart from other sets of similar nature.110V. pretty good condition
physically
view extra pics
Download manual (pdf)
|
$120
|
|
 Hallicrafters
SX-130
This is a big classy looking American classic receiver in very nice
cosmetic and electrical condition. just minor marks on tope cover and some lettering
damage on bandspread glass, still readable. Made In: United States 1965-1969
Voltages: 105-125 VAC 50/60 Hz Coverage: 535 - 31500 kHz Readout: Analog
Modes: AM/SSB-CW Selectivity: Wide/Normal/Narrow Circuit: Single
Conversion Superhet. 7 Tubes plus Semiconductors. Physical:
18.875x8x9.75" 22 Lbs. 479x203x248mm 11.3 kg Features: •¼" Head. Jack •
S-Meter • Bandspread • Product Det. SSB/CW • RF Gain • ANL • BFO •
Antenna Trimmer • Mute Terminals • Crystal Phasing • Dial Lamp • Speaker
Terminals. 110v with nice step down tranny provided. Everything working
very well, very sensitive and nice audio, don't know any history, Ive
never had the covers off but can see a few original Hallicrafter branded
valves,
Download
manual (djvu) View extra
pics/info |
$230
trademe |
|
 Lafayette
HE-80 (same as Trio JR-60) A 14 tube general coverage rich featured
communications receiver with RARE matching Speaker. pretty good
cosmetic condition for age, some light rust, paint chips etc. One of
Trio/Lafayette's best efforts, covers 550 kHz to 30 MHz PLUS 6 meters
(48-54Mhz). Has a logging scale and wide electrical bandspread tuning.
Receive modes AM, FM, CW and SSB. crystal calibrator. Other
features include Q Multiplier, RF and AF Gain controls. Also has
controls for AVC, ant trimmer, auto noise limiter ANL, BFO,
selectivity, S-meter etc. everything works, all the original knobs
etc, repair history unknown but looks unmodified to me. 110v but
supplied with 230v step down transformer, view extra pics
Download
manual (djvu) |
$230
trademe |
|
 Hallicrafters
S38-D 1955 5 valve model S38-D. 0.54-32 MHz in four bands,
collectable American ac-dc set, internal speaker, average condition, has
been repainted at some time, goes well, stronmg reception and audio, still has
all the original metal Hallicrafters valves, clean inside.
110V
view extra pics Download
manual (djvu)
|
$40
trademe |

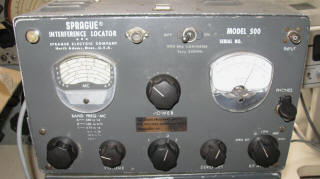

 Sprague Interference Locator,
qty two! - one going very well, second one is complete with a full set
of tubes for spares or power supply inverter repair,
which are infact pretty hot performers 550k to 220Mhz in 6 continuous
bands. These are ex nz radio freq service and have been refitted by them
with discreet inverters for field work. One receiver works well (tested
today), the other I think doesn't (not tested today), its missing a
valve, else looks complete as the first.
Has excellent original
instruction/service manual with 30 odd pages on operation, theory,
alignment and schematics etc. Could be a nice project to build a proper
HT power supply circuit for one. |
$50
trademe |
|
 Eddystone
870
Ship Cabin receiver, clean original condition inside, some paint
loss by way of chips and scratches outside and incorrect tuning knob.
Works on some bands, Bands that don't work will need RF coil repairs as they will been
damaged by the case trying to be installed upside down!. The top has a
1/2" lip that hits the cap screws breaking the phenolic base and coil
wire but pretty easy repair. Incidentally this is the third one Ive seen
with damage or repairs here. Supplied
without power cable. see below for specs |
TBA
|
|
Two
Eddystone
870
Ship Cabin receivers, spares units only or get one going out of the two,
both rare and collectable colours. The |
TBA
|
|
 870 is a 5-valve AC/DC ship's cabin receiver covering 150-300kHz and
510kHz to 24MHz in four other bands. This receiver was not considered a
communications receiver, as it was used solely for entertaining the
ship's crew. |
TBA |
|
 Trio
9R-59 This nine valve receiver, circa '65, covers 0.54 to 30Mhz and
is identical to the Lafayette HE30. AM.CW/has Q multiplier, ssb, if
gain, noise limiter and AVC etc. quite sensitive on am, audio quality
good, condition looks as original, I took covers off, pretty clean in
there, couple of filter caps look to have been replaced at some stage
looking underneath. Above avg cond, orig knobs etc, some very light rust
and staining that adds some character. goes well. c/w 9r-59ds manual
which is very similar. |
$95 |
|
 Lafayette
HR-40 AC/DC set features include bandspread, BFO, AVC, internal speaker, and
general coverage from 550khz to 30,000khz. Average to above average
original condition, goes okay, receiving am broadcast with just the
built in ferrite rod, has ext aerial socket also. a few marks here and there,
nothing too much to worry about. |
$50
trademe |
|
 Heathkit
HR-10 10-80M
AM.CW, goes okay, average or above average original condition, some
scratches and light rust in places, comes with a copy of the instruction
manual. The receiver covers 80 thru 10 meters. AM-CW-SSB. The seven tube
HR-10, like most Heath products, was sold in kit form. Add $20 for the Heathkit xtal calibrator which was an optional extra
I can install. |
$75
trademe |
|
 Trio
9R-59DS
covers shortwave 550 kHz - 30 Mhz continuous shortwave coverage, with
calibrated bandspread tuning for the 80, 40, 20, 15 and 10 meter amateur
bands, works very well, looks very nice, good lighting, powerful audio.
8 valves, feature include Noise Limiter & BFO, Nice tidy clean
condition, stable performer, very light rust on top. Comes with a copy of
the manual. |
$150 |
 KW
Electronics KW201,
Certainly one of the ugliest and one of the most rare English valve amateur bands comms receiver. It has very nice internals,
clean valves, very nice case, some disintegration of the lettering to
the slide rule dial, two fingernail size scratches to the front panel
with a bit of paint loss.
|
$650 |
|
KW Electronics Viceroy Transmitter
MkIII
10-80 Am/SSB/CW 100 W. 6146 finals, complete, nice condition,
untested, as-is/ |
$150 |
|
Yaesu FLDX400 Receiver and FRDX400 Transmitter Working
Pair, one receiver has 2m and 6m + cw crystal filter options installed.
|
Special
$250 |
Other Receivers for Sale
[
Solid State
|
Scanners
] |
Note: Pricing is
tentative and subject to change.
|
|
Main
Menu[
Home |
©redits
|
Search
| Promote
|
Links
|
Guest
Book |
What's New?
]
